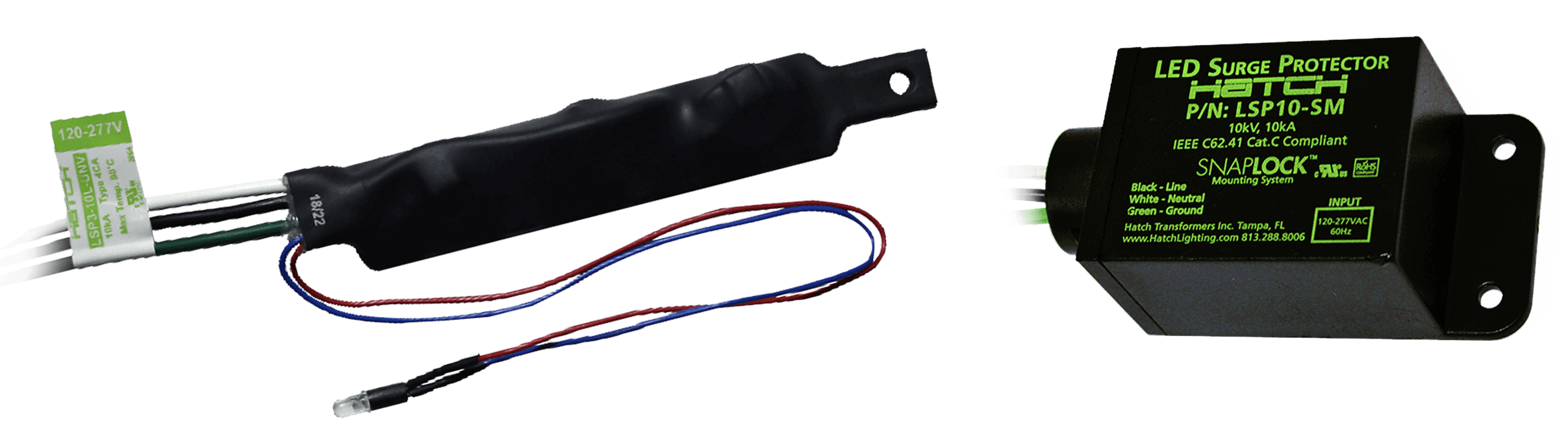

Surge Protection Devices
Unexpected surges destroy thousands of lighting fixtures annually.
Protect your lighting fixture installations with Hatch Surge Protection Devices. With easy installation and flat form factor options, we offer the protection you need.

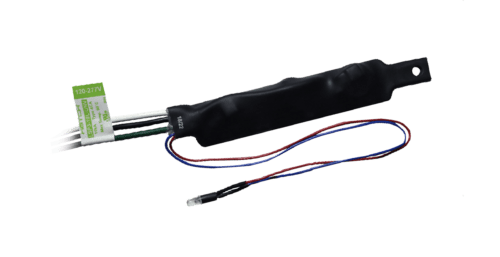

LSP3
The LSP3 family of UL Recognized Type 4CA Surge Protection Devices (SPDs) include integrated thermal fusing. The LSP3-10 devices are capable of a maximum single discharge current pulse of 10,000 amps. The LSP3-20 devices are capable of a maximum single discharge current pulse of 20,000 amps. Each LSP3 device is available as a 120-277V or 347-480V SPD and can be ordered with an end-of-life indicator LED that is illuminated when protection is still provided.
All LSP3 SPDs provide single phase protection for line/neutral, line/ground and neutral/ground per recommendations in IEEE C62.41.2-2002 Category C High Exposure. The LSP3-10 models meet the surge limits and testing requirements specified in ANSI C82.77-5-2017 for lighting equipment, Category C Medium Exposure Level and the limits specified in ANSI C136.2-2018 Enhanced Test Level. The LSP3-20 models are rated for ANSI C82.77-5-2017 Category C High Exposure Level and ANSI C136.2-2018 Extreme Test Level.

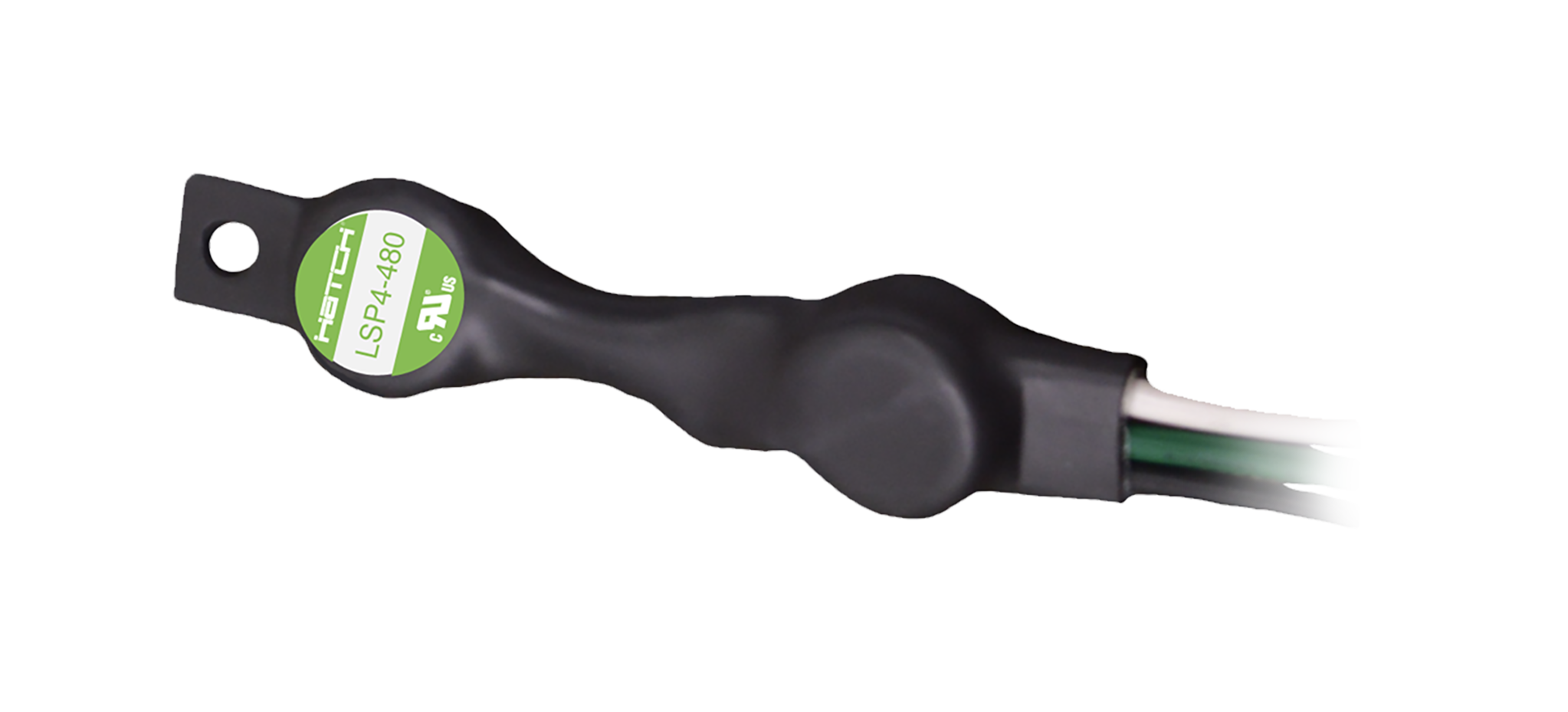

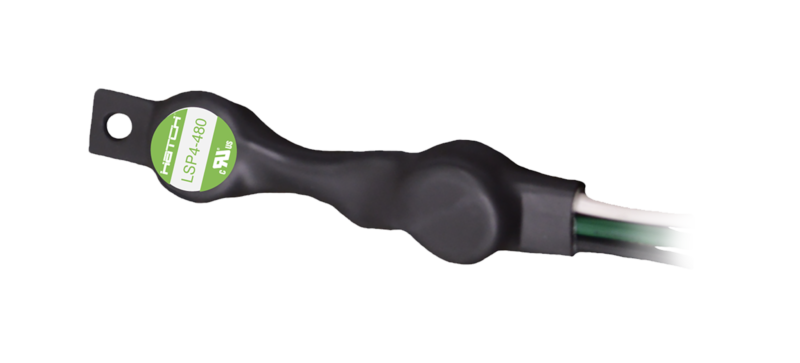

LSP4
The LSP4 family of SPDs are UL Recognized Type 5. These SPDs are capable of a maximum single discharge current of 10kA for line/ground and neutral/ground and 20kA for line/neutral. The LSP4 models are available as 120-277 or 347-480V SPDs. The LSP4 models are rated for IP65 environmental exposure.
All LSP4 SPDs provide single phase protection for line/neutral, line/ground and neutral/ground per recommendations in IEEE C62.41.2-2002 Category C High Exposure. The LSP4 models meet the surge limits and testing requirements specified in ANSI C82.77-5-2017 for lighting equipment, Category C Medium Exposure Level and the limits specified in ANSI C136.2-2018 Enhanced Test Level.

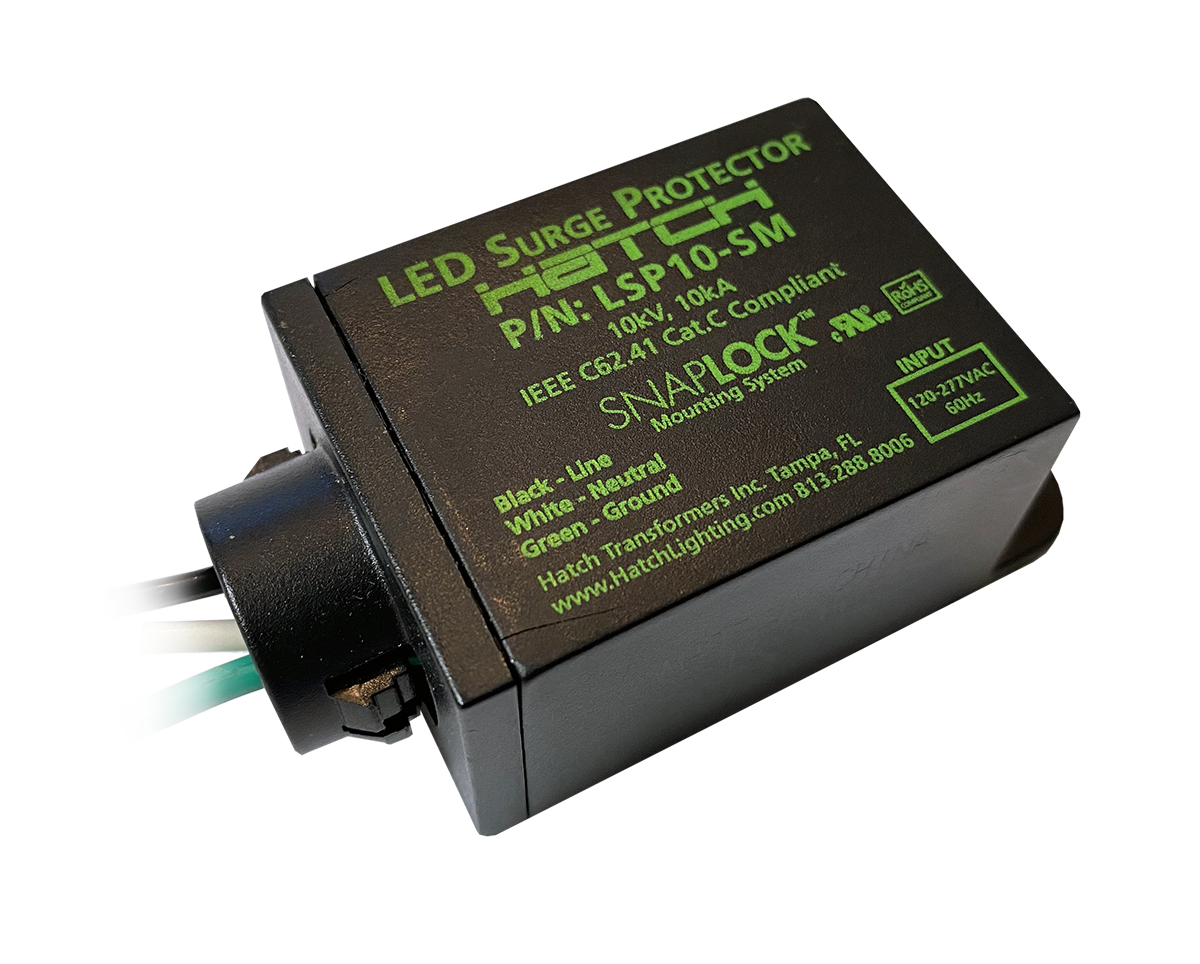

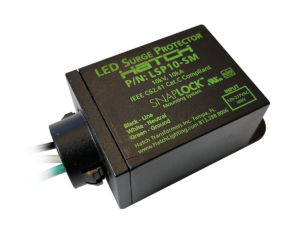

LSP10-SM
The LSP10-SM is a UL Recognized Type 4CA SPD and includes integrated thermal fusing. It is designed to be used in conjunction with lighting fixtures to provide an additional level of protection against power line disturbances in industrial, commercial and residential applications. The LSP10-SM protects LED, Electronic Fluorescent & HID ballasts as well as all other electronic products. This product is a Type 4CA SPD provides single phase protection for line/neutral, line/ground and neutral/ground.
The LSP10-SM features SNAPLOCK Mounting for one step secure mounting to a standard 1/2” electrical knockout and is also factory installable.
The LSP10-SM provides single phase protection for line/neutral, line/ground and neutral/ground per recommendations in IEEE C62.41.2-2002 Category C High Exposure. The LSP10 meets the surge limits and testing requirements specified in ANSI C82.77-5-2017 for lighting equipment, Category C Medium Exposure Level and the limits specified in ANSI C136.2-2018 Enhanced Test Level.
10kA,
10kA; 20kA L-N,
10kA; 20kA L-N,
